Community Feedback
Fans are taking ideas from the Exodus patent and putting them into practice. These videos show community members building, testing, and refining propulsion systems inspired by the patented technology.

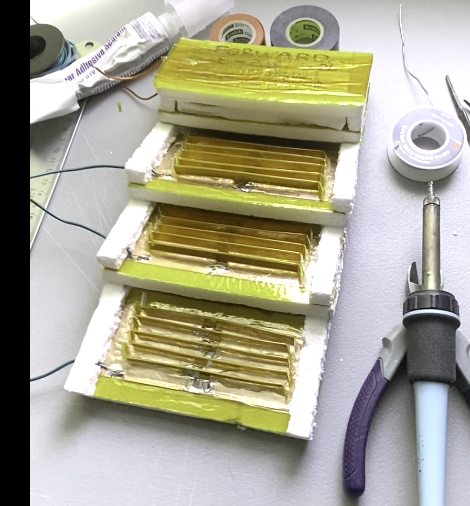

A community member shares a working propulsion system built from concepts presented in the Exodus patent, including the build and test process.
Watch on YouTubeA follow-up video from the same fan showing additional testing, refinements, and continued experimentation with the propulsion system.
Watch on YouTubePart 3 brings together the testing-results video and the follow-up build observations already shared with Exodus, including force measurements, rotation testing, and later design experiments.
Watch on YouTube

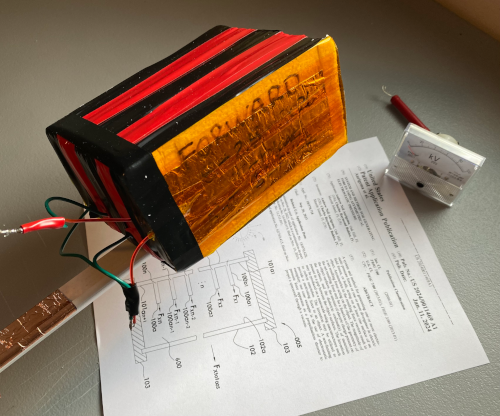

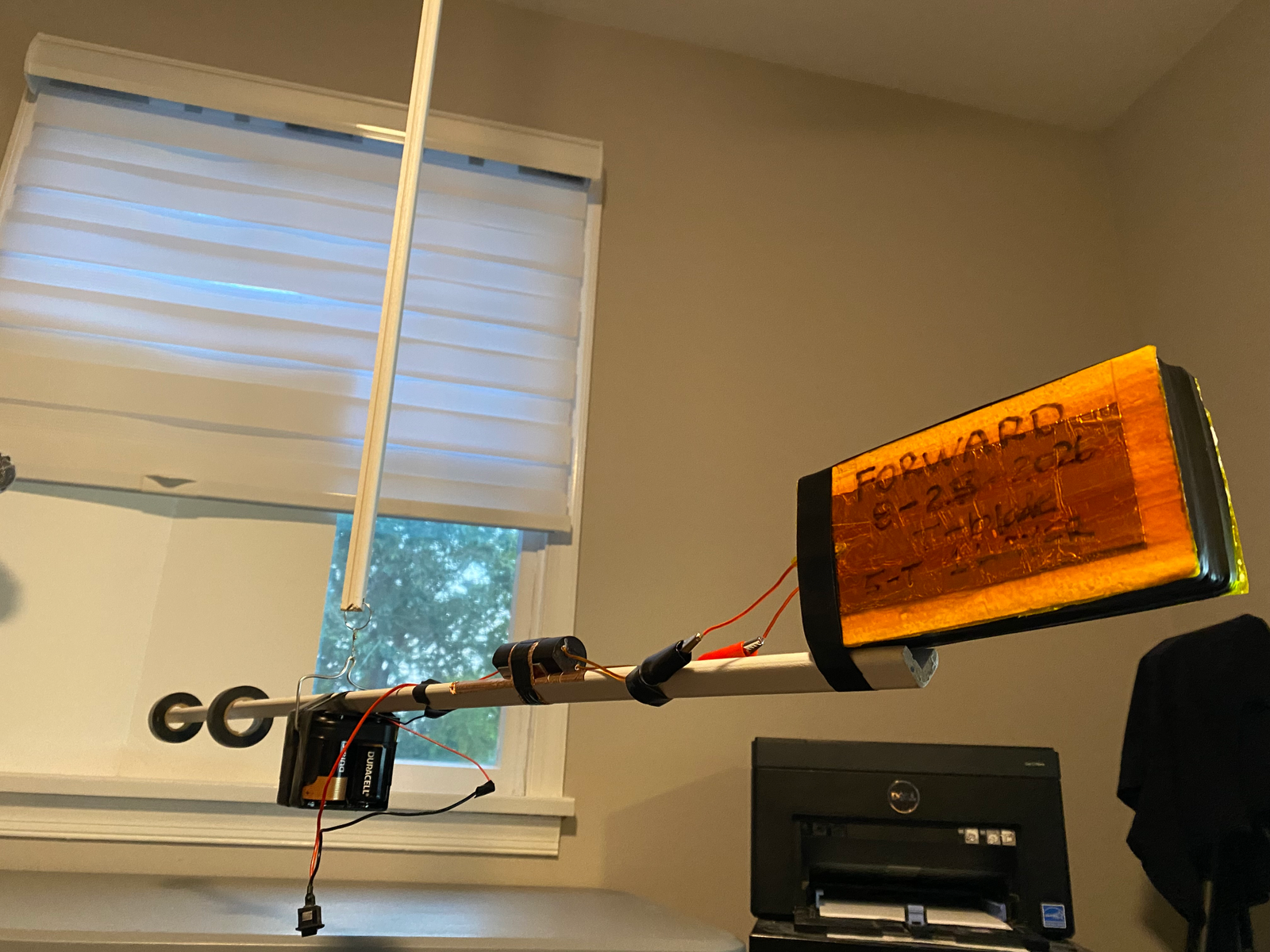

A well thought out and constructed T-Blade thruster made from the patent. It consistently produced 1200 µN of thrust both upward and downward as measured against a digital coin scale. Rotations were also observed from a suspended assembly.
Watch the Test

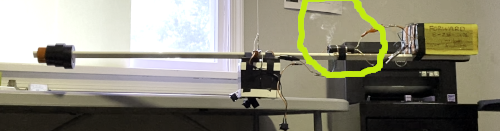

This is a 1200 µN T-Blade (styrofoam) thruster on a stick suspended from a rigid support and fitted with a swivel. The idea was to reduce the counter-torque generated by a suspension string by replacing the string with a solid support and a low-friction swivel.
The approach did not work. We have also tried variations of this idea over the years without success. For our rotators, the answer has continued to be a thin, strong string. We enjoy seeing experimenters test ideas for themselves and hope those efforts lead to new innovations.

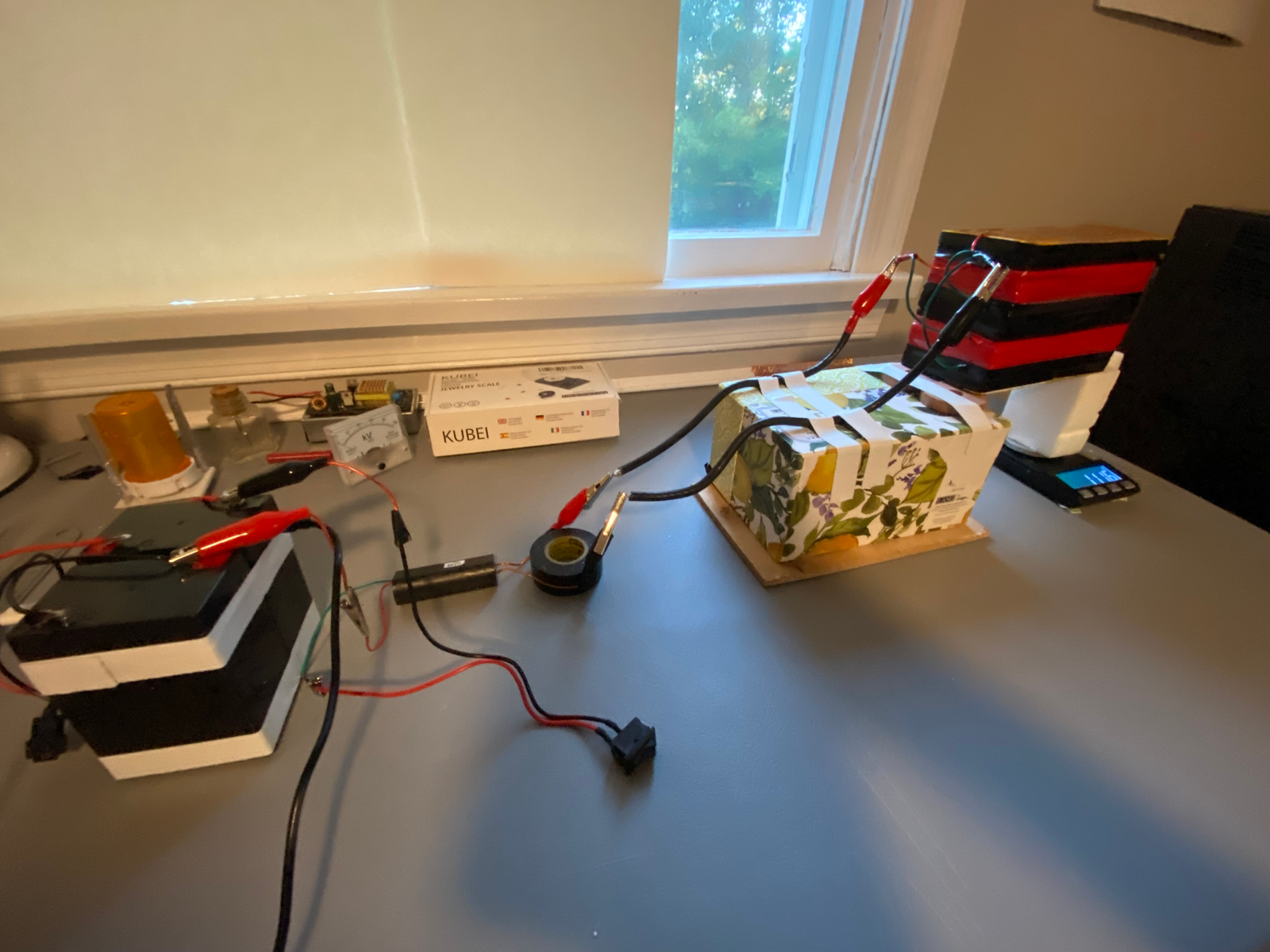

The new multi-stack thruster is in shakedown testing. The Part 3 testing-results video is included in the previous tab.
This new design does not use the standard T-Blade configuration to create asymmetrical electrostatic pressure thrust. Instead, it uses different material thicknesses and configurations to create asymmetry in the field-induced pressures.
Maximum thrust exceeds 4 mN, with demonstrations using both a digital scale and a string-suspended rotary device.
Watch on YouTube
